Bench center

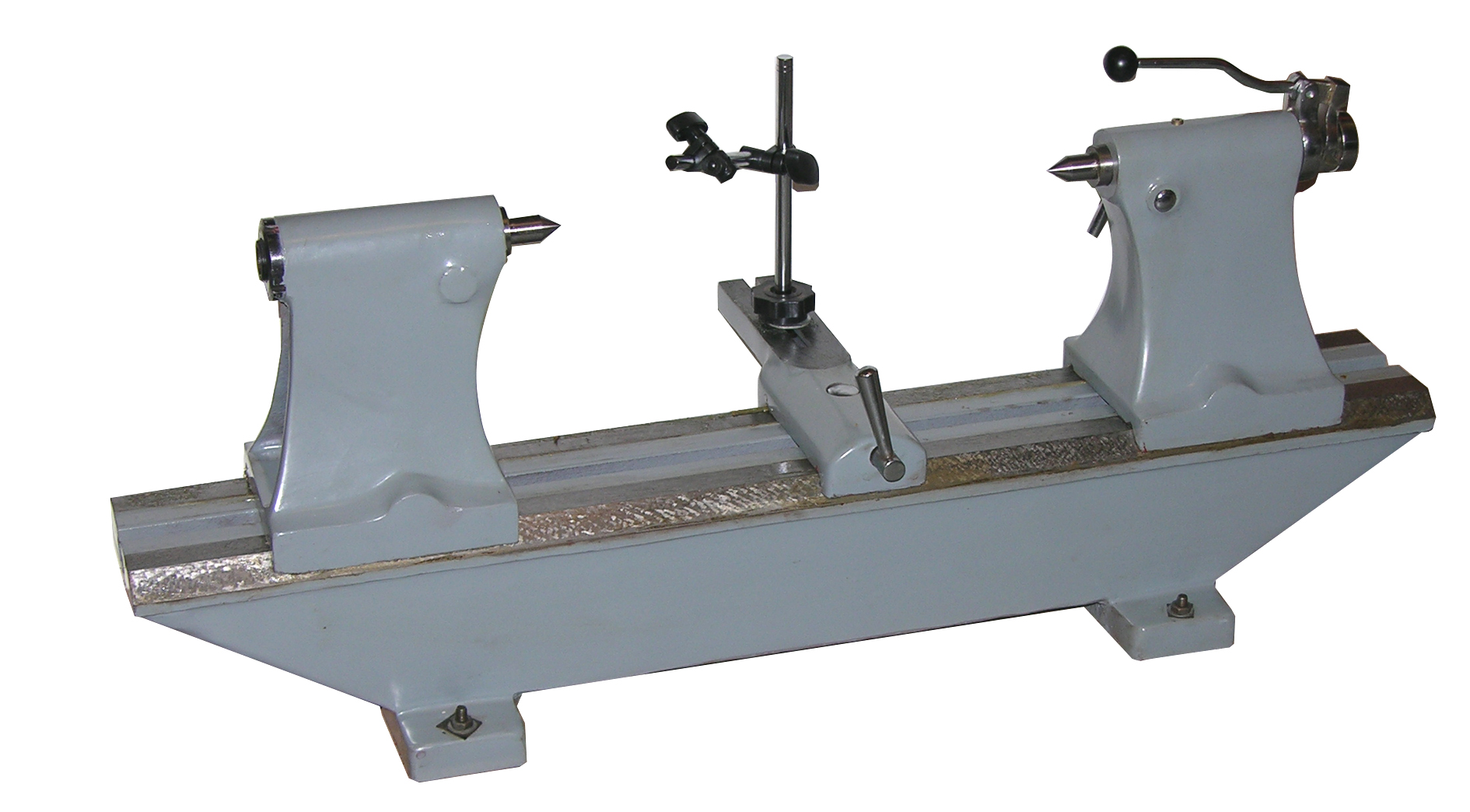

Bench center - base and tailstock from cast iron- point 60° - for max. diameter until 350 mm - 16 mm adjustable gib - with dial indicator stand    - column 12 x 176 mm,    - measuring arm 10 x 150 mm    - for dial indicator with shank 8 mm Range: 1000 mmTotal length: 1420 mmAcccuracy: 0,02 mm

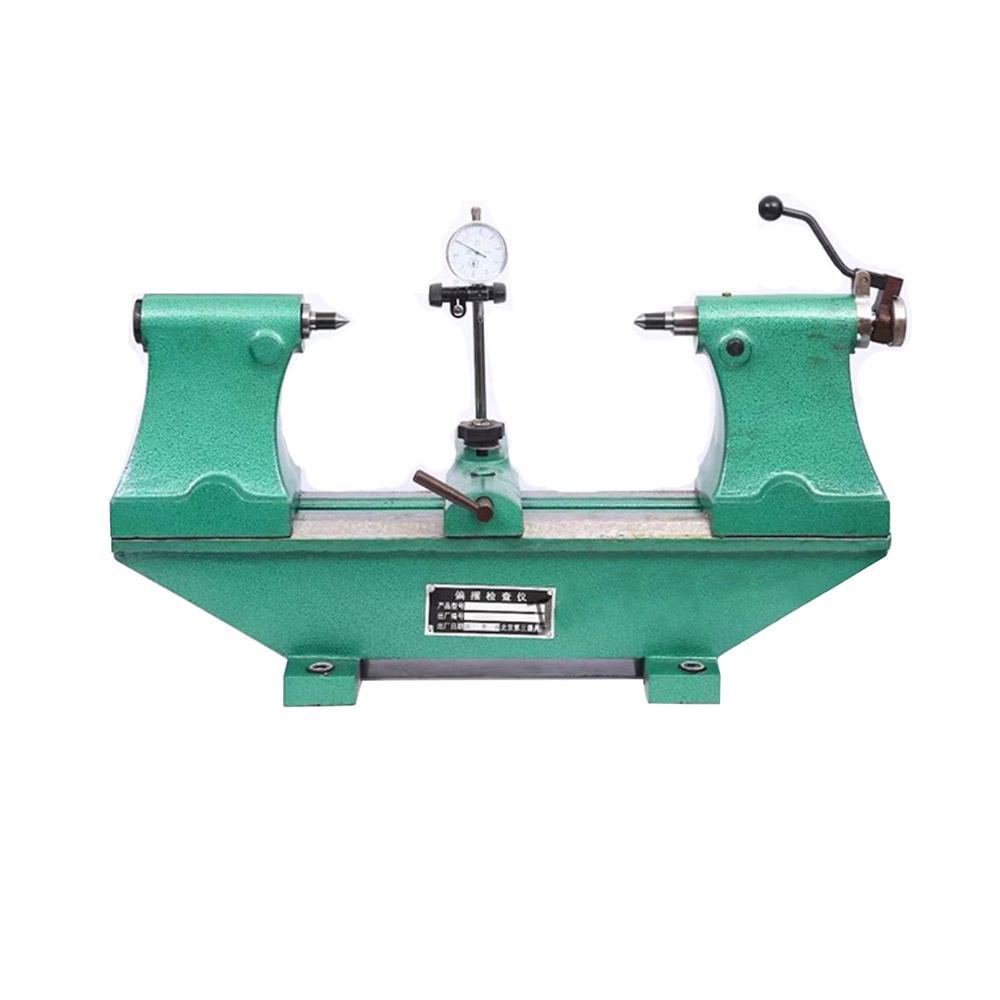

Bench center 300 mm - base and tailstock from cast iron- point 60° - for max. diameter until 130 mm - 8 mm adjustable gib - with dial indicator stand    - column 12 x 176 mm,    - measuring arm 10 x 150 mm    - for dial indicator with shank 8 mm

Bench center - base and tailstock from cast iron- point 60° - for max. diameter until 350 mm - 16 mm adjustable gib - with dial indicator stand    - column 12 x 176 mm,    - measuring arm 10 x 150 mm    - for dial indicator with shank 8 mm Range: 500 mmTotal length: 920 mmAcccuracy: 0,02 mm

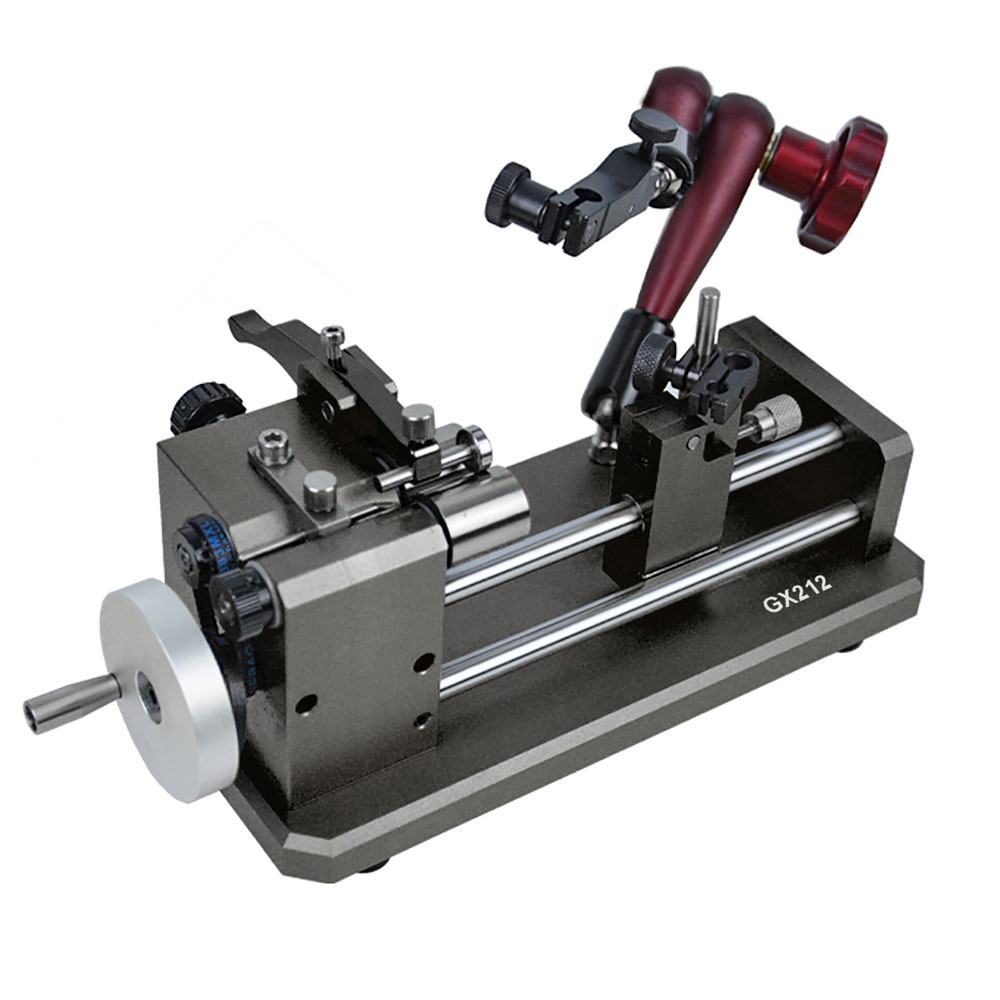

Bench center for Ø 1 - 35 mm - for measuring the concentricity and axial runout accuracy of waves, for max. Ø 1 - 35 mm- fast positioning, suitable for series measurements- with two measuring stands to take dial indicators or dial testing indicators with shank Ø 8 mm- measurements in two places at the same time- with hand rotary wheel

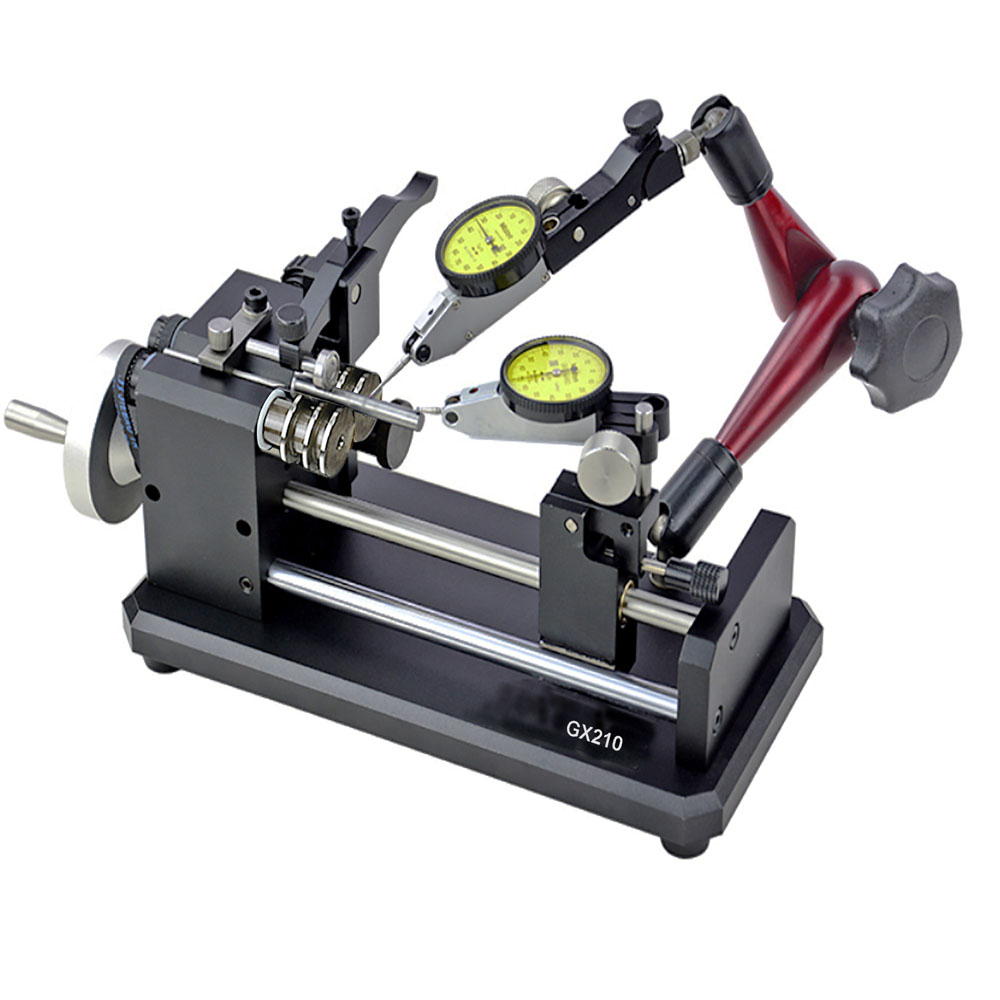

Bench center for Ø 1 - 35 mm with 2 grooves - for measuring the concentricity and axial runout accuracy of waves, for max. Ø 1 - 35 mm- fast positioning, suitable for series measurements- with two measuring stands to take dial indicators or dial testing indicators with shank Ø 8 mm- measurements in two places at the same time- with hand rotary wheel- delivery without dial indicator or dial testing indicator ( available as an accessory)

Bench center for Ø 20 - 102 mm with 2 grooves - for measuring the concentricity and axial runout accuracy of waves, for max. Ø 20 - 102 mm- fast positioning, suitable for series measurements- with two measuring stands to take dial indicators or dial testing indicators with shank Ø 8 mm- measurements in two places at the same time- with hand rotary wheel- delivery without dial indicator or dial testing indicator ( available as an accessory)

Bench center for Ø 3 - 35 mm - for measuring the concentricity and axial runout accuracy of waves, for max. Ø 3 - 35 mm- fast positioning, suitable for series measurements- with two measuring stands to take dial indicators or dial testing indicators with shank Ø 8 mm- measurements in two places at the same time- with hand rotary wheel
