Digital control caliper 300 x 90 mm with points IP 65

Preview: Digital control caliper 300 x 90 mm with points IP 65 Preview: Technical drawing Digital control caliper 300 x 90 mm with points IP 65
Digital control caliper 300 x 90 mm with points IP 65

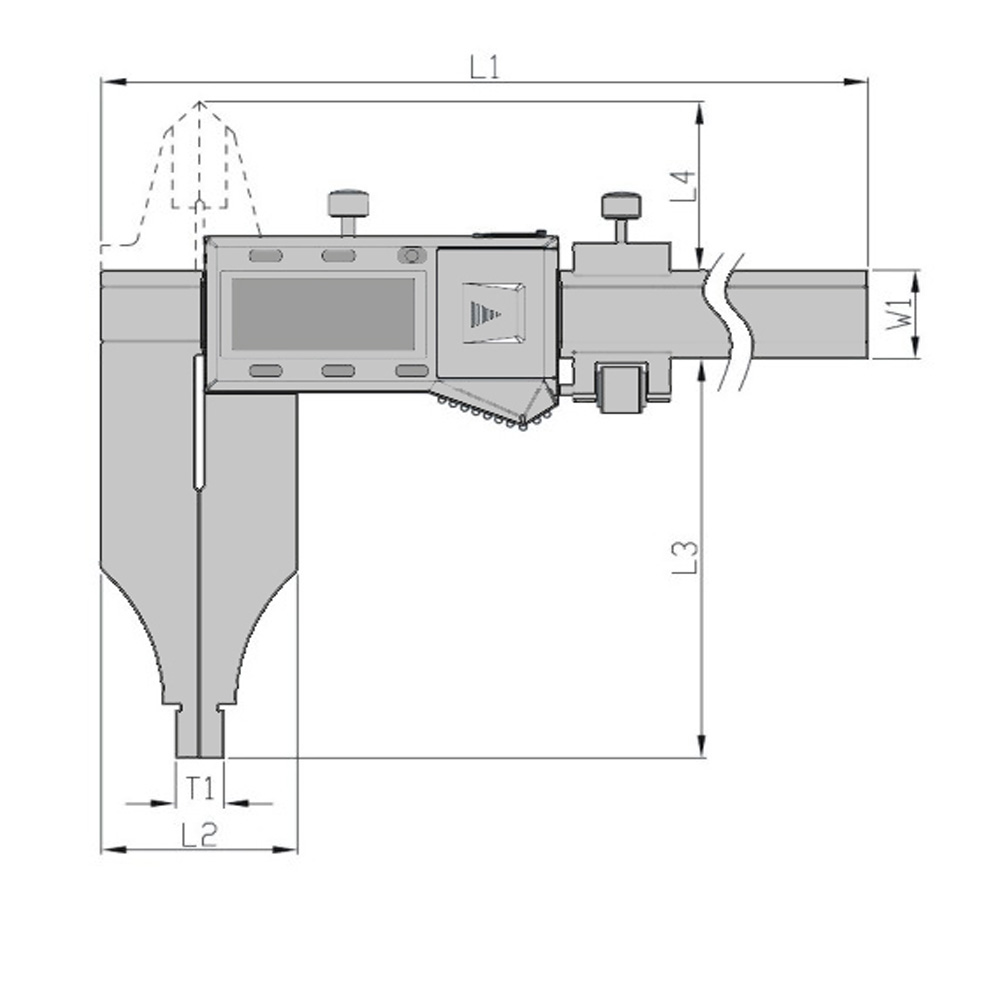

Technical drawing Digital control caliper 300 x 90 mm with points IP 65

€153.00 *
€182.07 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 217.133
  • Customs tariff number: 9017 3000
  • European article number: 4054469146904
  • Weight: 0,9 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Digital control caliper 300 x 90 mm with points - range 300 mm , jaws 90 mm - with... more
Close menu
Product information "Digital control caliper 300 x 90 mm with points IP 65"

Digital control caliper 300 x 90 mm with points

- range 300 mm, jaws 90 mm
- with inductiv measuring system
- IP 65 protection, water and dust proof
- made of stainless steel, hardened
- with fine adjustment
- reading: 0,01 mm oder 0,0005”
- with mm/inch, hold, set, on/off, 0/inc und data button
- with data output RB 6
- in case/box (for transport only)

Range 300 mm
Jaws 90 mm
Accuracy 0,03 mm

Range: 0 - 300 mm
Type: digital, made of stainless steel, hardened, with fine adjustment, with inductive measuring system, with points
Jaws: 90 mm
Accuracy: 0,03 mm
Reading: 0,01 mm
Data output: RB 6
Protection class: IP 65
Related links to "Digital control caliper 300 x 90 mm with points IP 65"
Technical data
Messbereich mm Range mm Schnabellänge a mm  Jaws a mm... more
Zurück
Messbereich mm
Range mm		 Schnabellänge a mm
Jaws a mm		 Genauigkeit mm
Accuracy mm		 T1 mm L2 mm L3 mm L4 mm W1 mm
300 90 0,03 10 40 90 38 20
