Magnetic dial support column total height 293 mm with central clamping
€25.08
Available, delivery time: 1-3 workdays
Product information "Magnetic dial support column total height 293 mm with central clamping"
Magnetic dial support column total height 293 mm
- with central clamping, thread M8, without magnetic base
- for dials 8 mm shank
- column of Art.-Nr. 208.109
- total height: 293 mm
| Total height: | 293 mm |
|---|

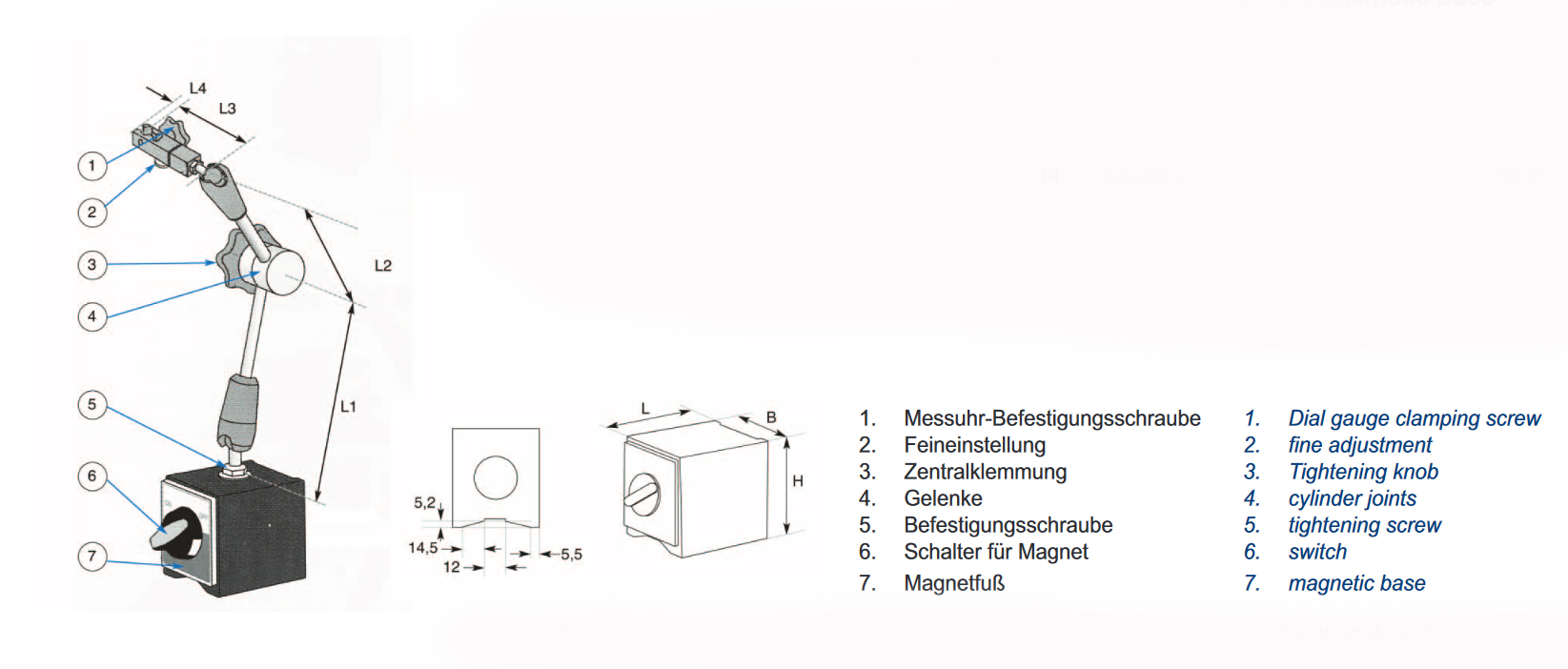

Technical Data
| Gesamthöhe mm Total height mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
Fuß (LxBxH) mm Base (LxBxH) mm |
Magnetkraft kg Clamping force kg |
| 293 | 128 | 108 | 46 | 14 | - | - |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Granit plate 150 x 150 x 40 mm with thread M8 - made of dark granit- with M8 thread for dial supports- accuracy DIN 876/0 Dimensions : 150 x 150 x 40 mmThread : 1 x M8
Permanent magnetic base 24 kg magnet force - round base with magnet - ideal for measuring dial support on flat iron or steel face Magnetic force kg: 24Base (Ø x H) mm: 50 x 10,0, thread M8
Dial indicator range 10 mm - accuracy according to manufacture standard - reading: 0,01 mm - with tolerance marks - shank Ø 8 h6 - dial face rotateable by outer ring Range: 10 mm

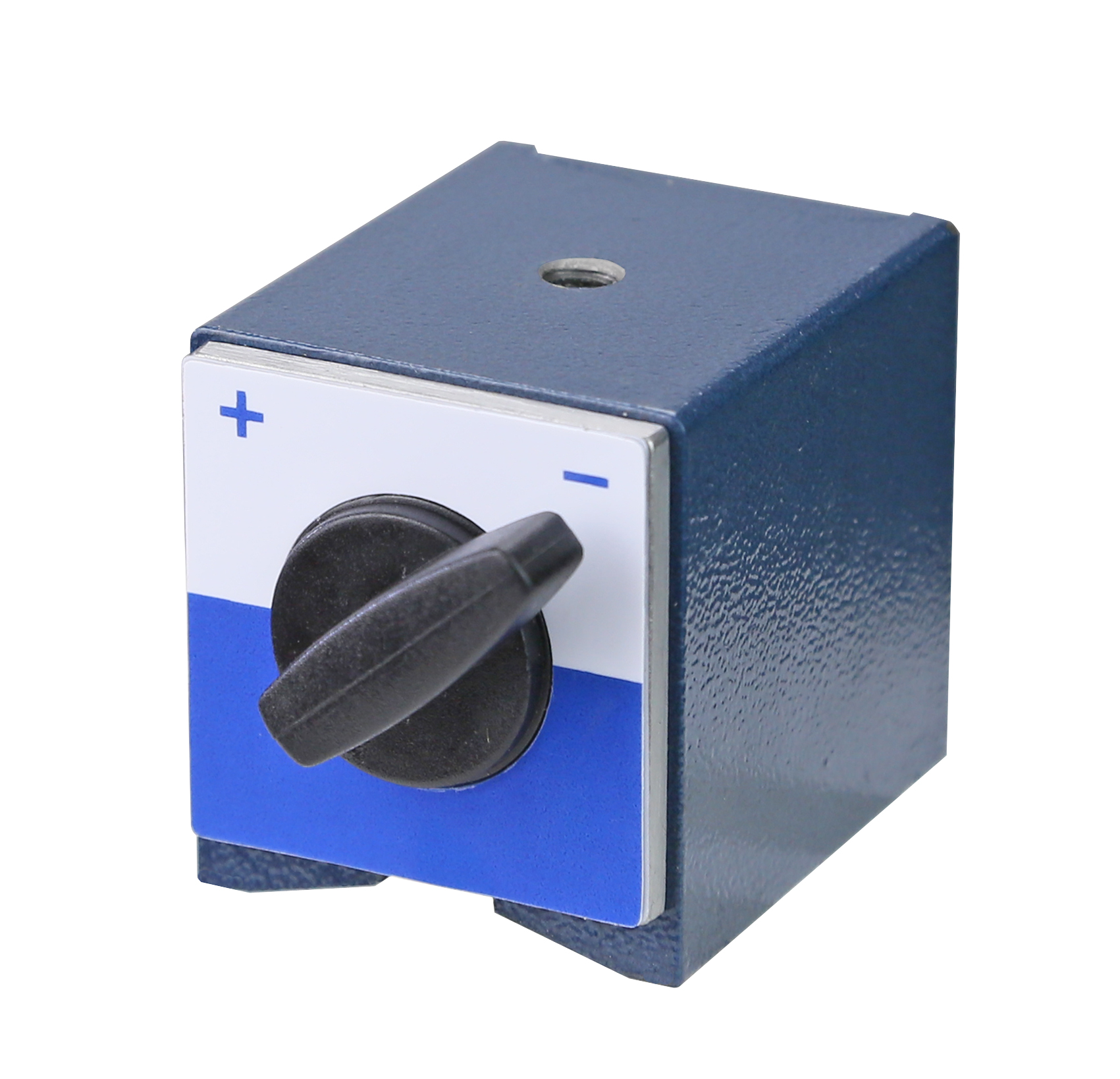

Magnetic base 60 kg for magnetic dial support - with on/off switch - with prismatic base- with thread M8 Base (LxBxH) mm: 59 x 50 x 55, M8Magnet force: 60 kg

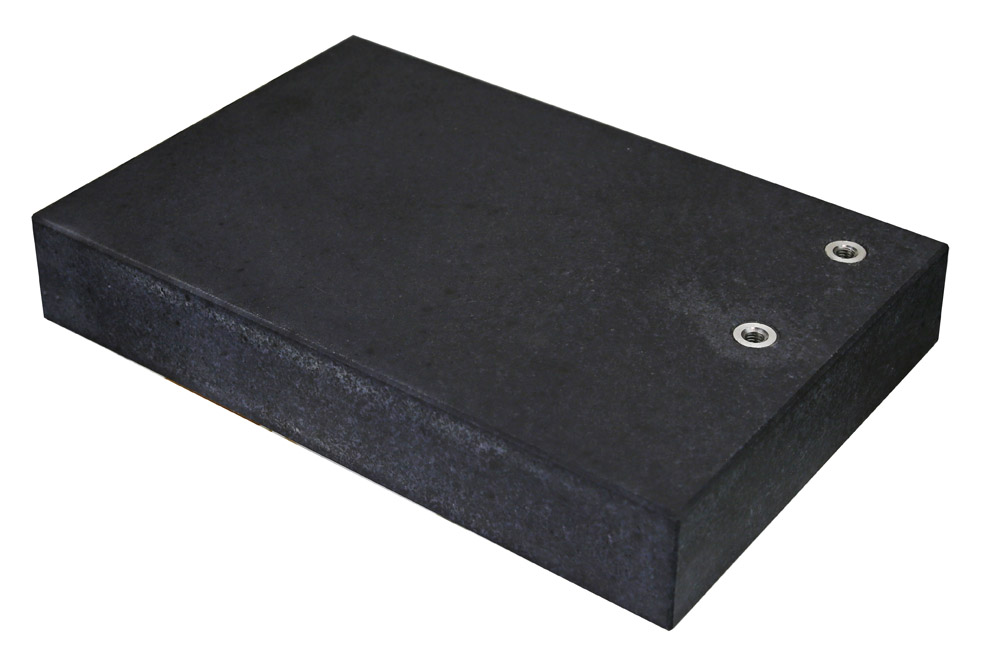

Granit plate 300 x 200 x 50 mm with thread M8 - made of dark granit- with M8 thread for dial support- accuracy DIN 876/0 Dimensions : 300 x 200 x 50 mmThread : 2 x M8

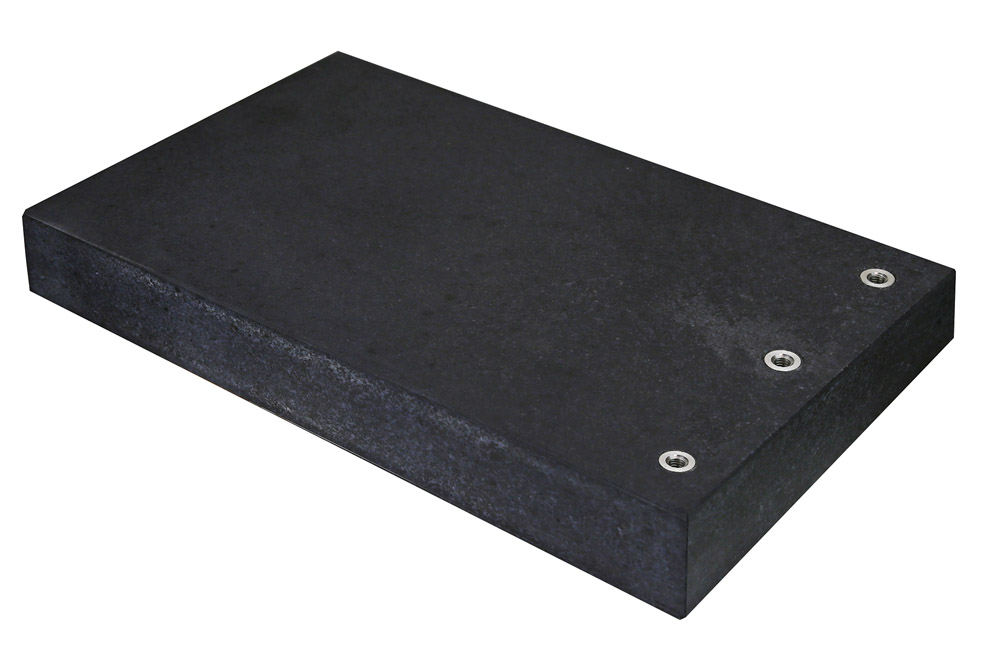

Granit plate 400 x 250 x 50 mm with thread M8 - made of dark granit- with M8 thread for dial support- accuracy DIN 876/0 Dimensions : 400 x 250 x 50 mmThread : 3 x M8

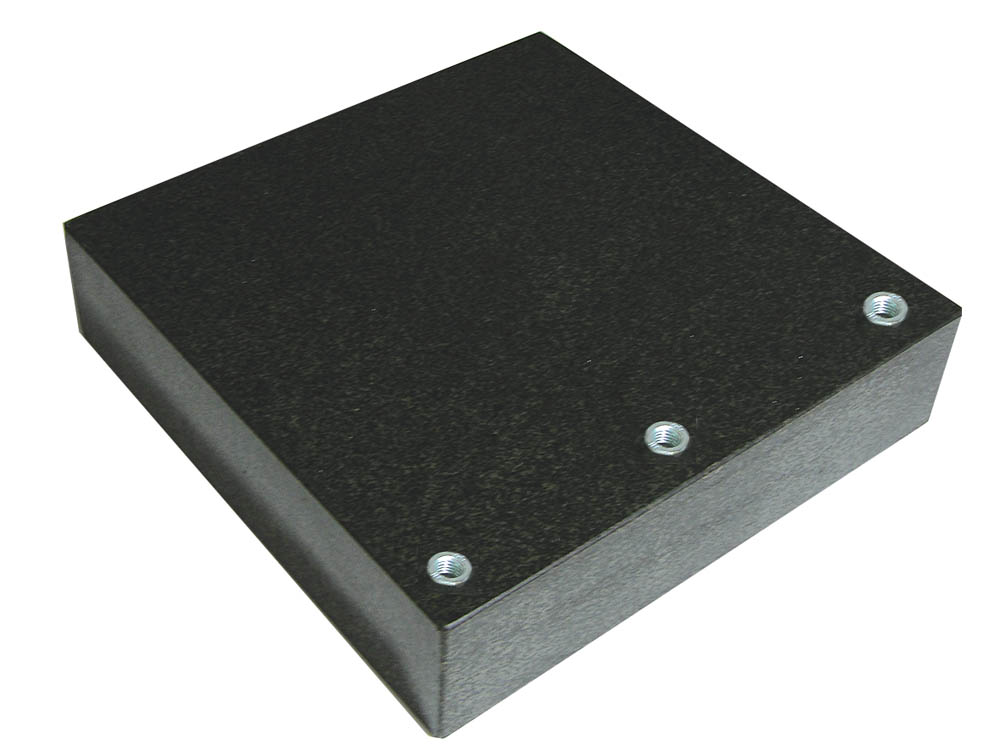

Granit plate 400 x 400 x 50 mm with thread M8 - made of dark granit- with M8 thread for dial support- accuracy DIN 876/0 Dimensions : 400 x 400 x 50 mmThread : 3 x M8
Permanent magnetic base 36 kg magnet force - round base with magnet - ideal for measuring dial support on flat iron or steel face Magnetic force kg: 36Base (Ø x H) mm: 80 x 13,0, thread M8

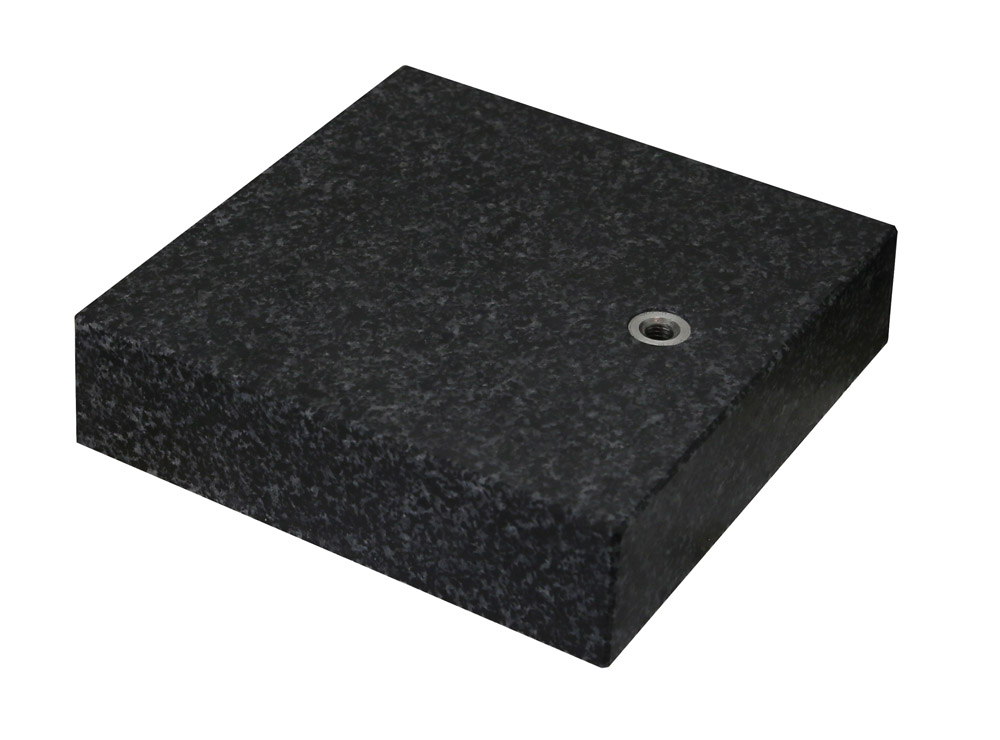

Granit plate 200 x 150 x 50 mm with thread M8 - made of dark granit- with M8 thread for dial supports- accuracy DIN 876/0 Dimensions : 200 x 150 x 50 mmThread : 1 x M8
Permanent magnetic base 12 kg magnet force - round base with magnet - ideal for measuring dial support on flat iron or steel face Magnet force kg: 12Base (Ø x H) mm: 50 x 10,5, thread M8
Permanent magnetic base 15 kg magnet force - round base with magnet - ideal for measuring dial support on flat iron or steel face Magnetic force kg: 15Base (Ø x H) mm: 66 x 10,5, thread M8
Similar products

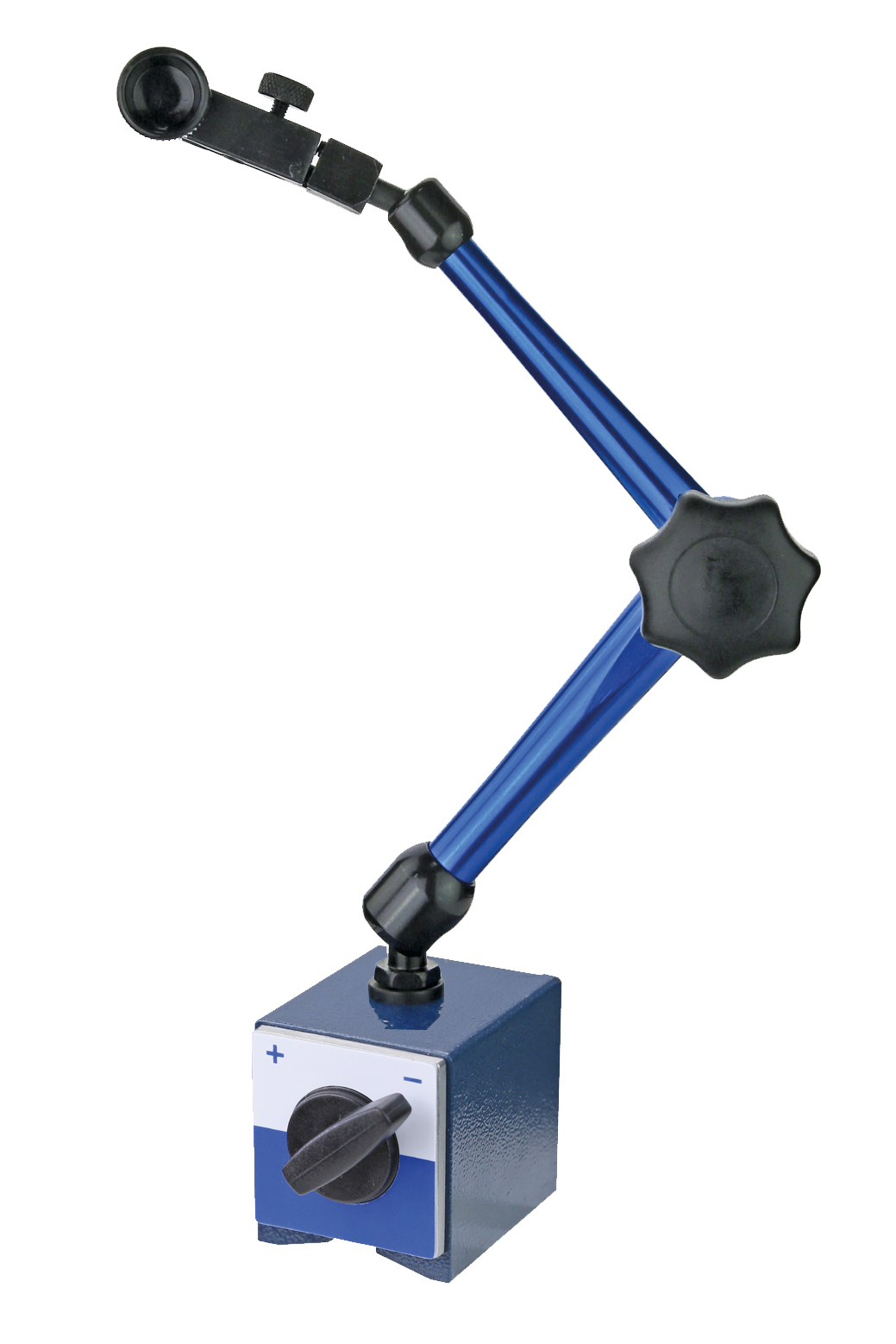

Magnetic dial support 60 kg with central clamping - with central mechanical clamping - fine adjustment - for dials 8 mm shank - with on/off switch and prismatic base Total height: 348 mm Magnetic force: 60 kg Base (LxBxH) mm: 59 x 50 x 55,M8
