Outside micrometer frame coated 225 - 250 mm DIN 863

Preview: Outside micrometer frame coated 225 - 250 mm DIN 863 Preview: Technical drawing Outside micrometer frame coated 225 - 250 mm DIN 863
Outside micrometer frame coated 225 - 250 mm DIN 863

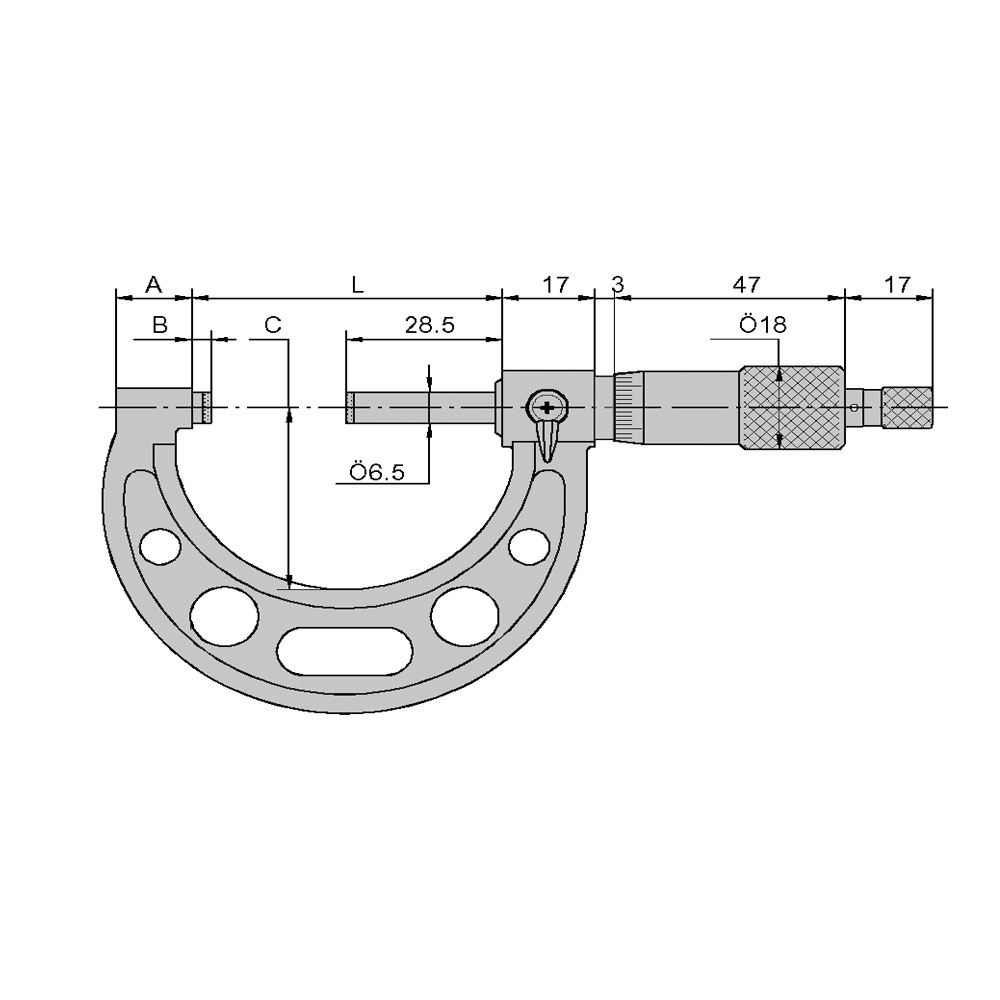

Technical drawing Outside micrometer frame coated 225 - 250 mm DIN 863

€61.20 *
€72.83 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 304.417
  • Customs tariff number: 9017 3000
  • European article number: 4054469116969
  • Weight: 1,9 kg
  • In stock: 26
Description Technical data Evaluations 0
Description
Outside micrometer frame coated 225 - 250 mm - with carbide measuring faces - frame coated,... more
Close menu
Product information "Outside micrometer frame coated 225 - 250 mm DIN 863"

Outside micrometer frame coated 225 - 250 mm

- with carbide measuring faces
- frame coated, scale chrome finished
- spindle Ø 6,5 mm, thread pitch 0,5 mm
- with ratchet
- scale 0,01 mm
- accuracy DIN 863
- with standard
- in case/box

Range 225 - 250 mm

Range: 225 - 250 mm
Type: analogue, with carbide measuring faces, with ratchet
Reading: 0,01 mm
Accuracy: DIN 863
Related links to "Outside micrometer frame coated 225 - 250 mm DIN 863"
Technical data
Messbereich mm Range mm A mm B mm C mm L mm 225 -... more
Zurück
Messbereich mm
Range mm		 A mm B mm C mm L mm
225 - 250 19,4 5,5 142 260
