Digital blade micrometer 0-25 mm

Product information "Digital blade micrometer 0-25 mm"

Blade micrometer digital 0-25 mm

- spindle: non-rotating, Ø 6,5 mm
- thread pitch 0,5 mm
- accuracy 0,005 mm

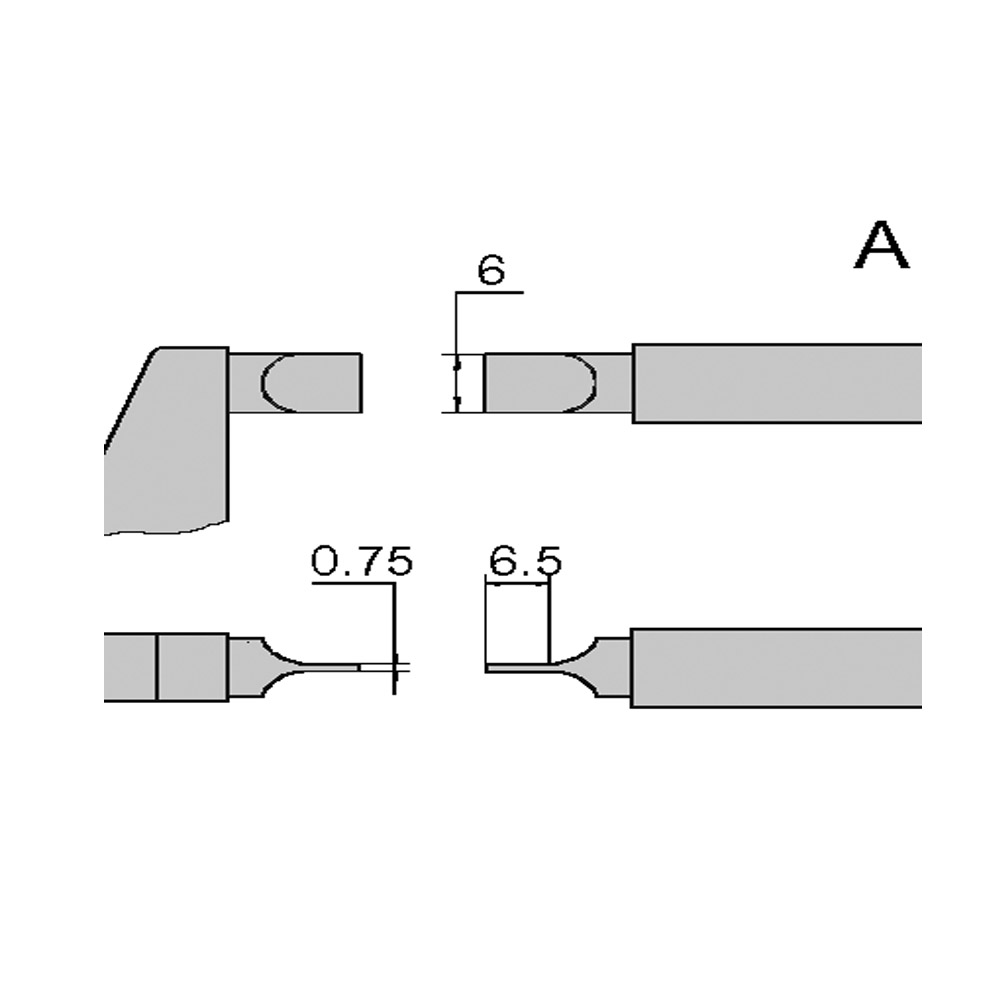

- with measuring faces 0,75 x 6,5 mm
- with ratchet
- display with on/off, abs/inc, unit and set button
- with data output RB 4.1
- reading 0,001 mm or 0,00005"
- in case/box

Range 0 - 25 mm

Accuracy: 0,005 mm
Data output: RB 4.1
Range: 0 - 25 mm
Reading: 0,001 mm
Type: Blade micrometer, digital, with ratchet

Technical Data

Messbereich mm
Range mm
Genauigkeit mm
Accuracy mm
0 - 25 0,005

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
