Digital pistol three point internal gauge 50 - 100 mm
Product information "Digital pistol three point internal gauge 50 - 100 mm"
Digital pistol three point internal gauge
- 4 pieces/ set
- range 50 - 100 mm
- for blind hole
- display rotate 90°, with on/off/set, hold, mm/inch/Mode button
- with bluetooth data output
- in case/box
Attention:
Setting standard an extension are not included!
| Accuracy: | 0,005 mm |
|---|---|
| Data output: | Bluetooth |
| Range: | 50 - 100 mm |
| Reading: | 0,001 mm |
| Set: | 4 pcs. |
| Type: | digital |
| usable for measuring of: | blind hole |

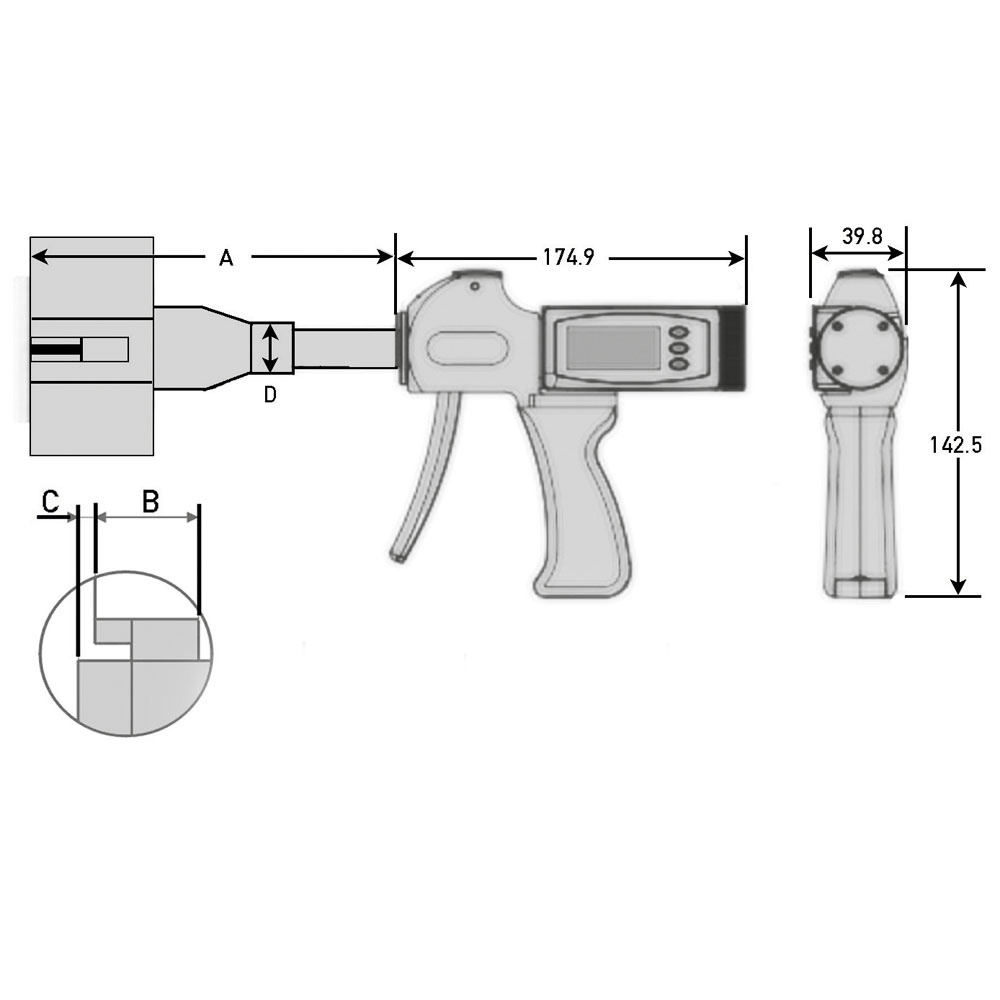

Technical Data
| Messbereich mm Range mm |
Messköpfe Measuring heads |
Teil-Messbereiche mm Part range mm |
C mm |
A mm |
B mm |
D mm |
Ablesung mm Reading mm |
Genauigkeit* mm Accuracy* mm |
| 50 - 100 mm | 4 | 50 - 63 62 - 75 75 - 88 88 - 100 |
0,5 | 105 | 18,0 | 23,5 | 0,001 | 0,005 |
| * Bei vollanliegenden Messflächen! * At full contact of the measuring faces! |
||||||||
