Digital three point internal gauge 6 - 12 mm range

Preview: Digital three point internal gauge 6 - 12 mm range Preview: Technical drawing Digital three point internal gauges
Digital three point internal gauge 6 - 12 mm range

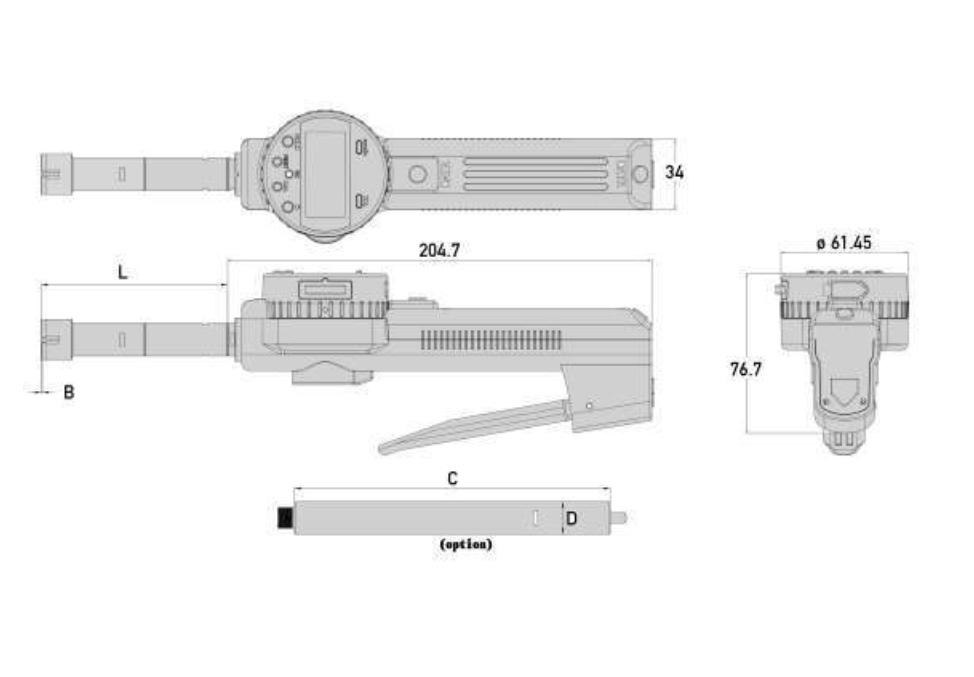

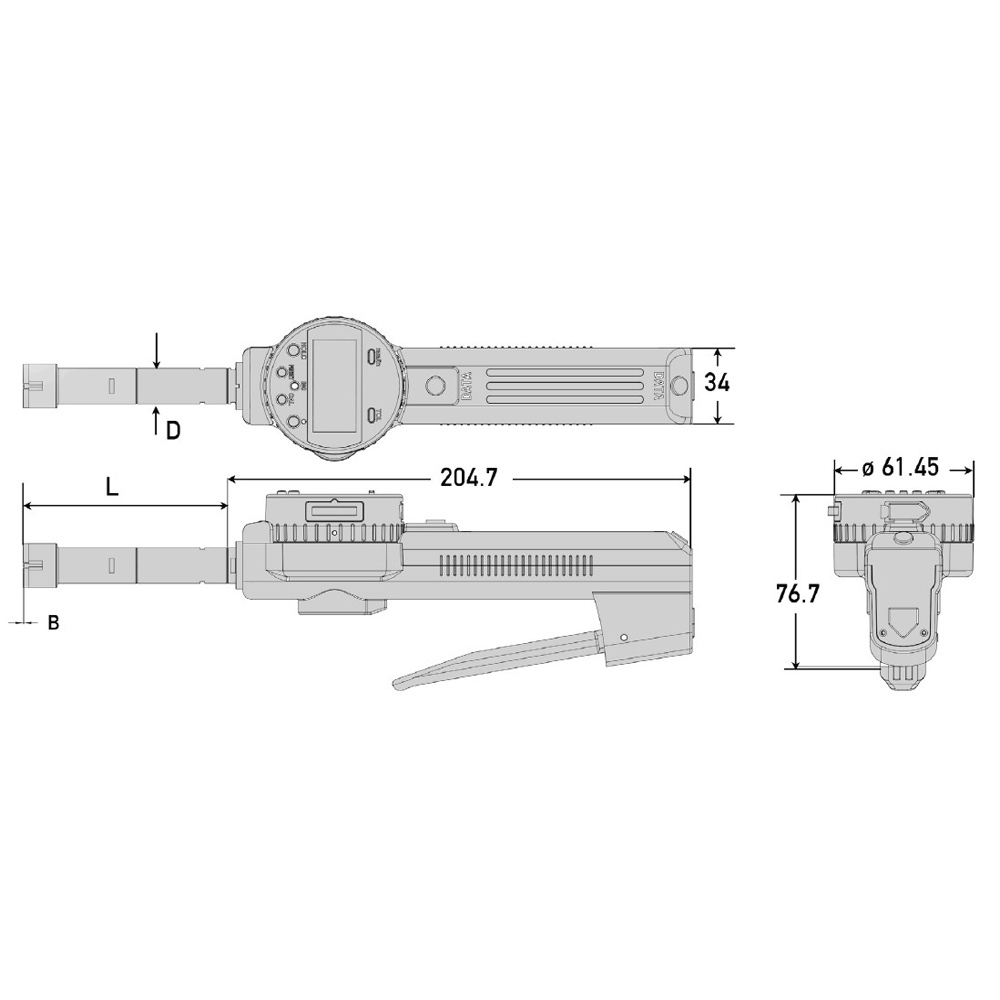

Technical drawing Digital three point internal gauges

€717.00 *
€853.23 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 312.344
  • Customs tariff number: 9017 3000
  • European article number: 4054469181660
  • Weight: 1,62 kg
  • In stock: 15
Description Technical data Evaluations 0
Description
Digital three point internal gauge 6 - 12 mm - 3 meas. heads, part range 6 - 8 mm, 8 - 10... more
Close menu
Product information "Digital three point internal gauge 6 - 12 mm range"

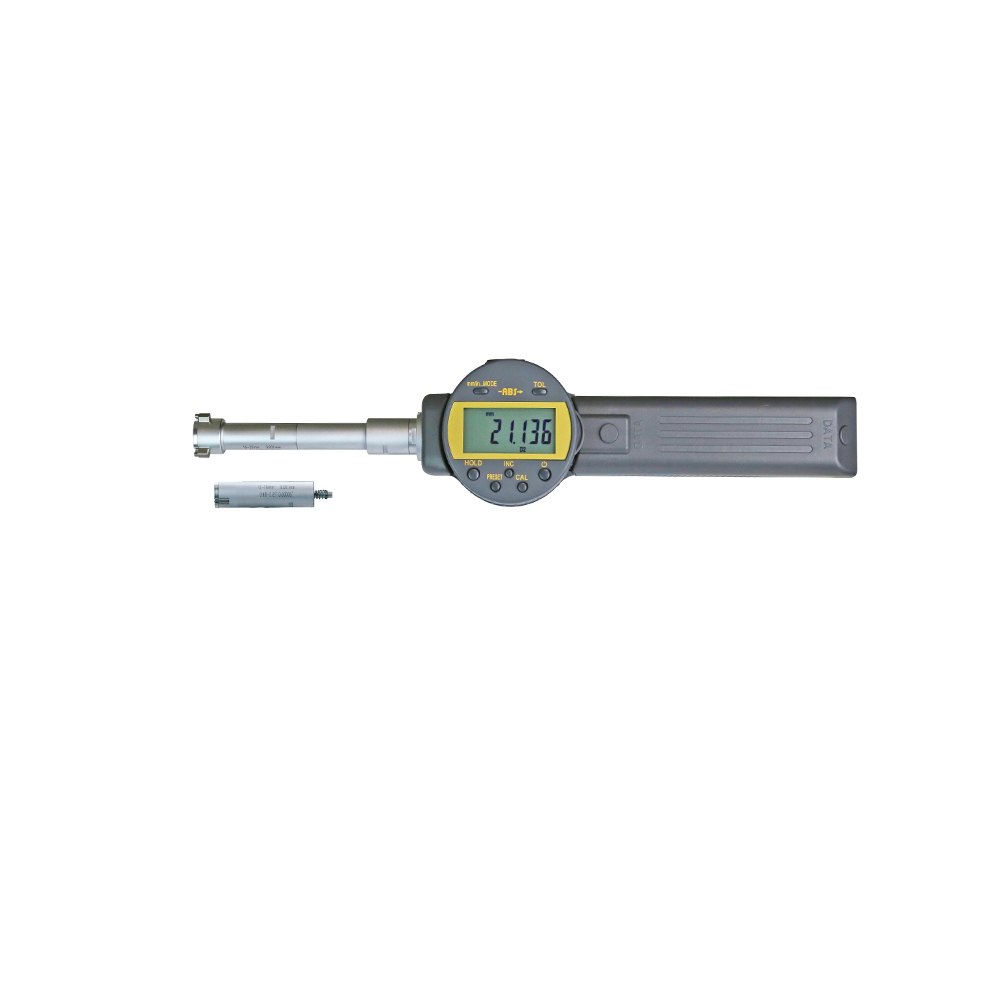

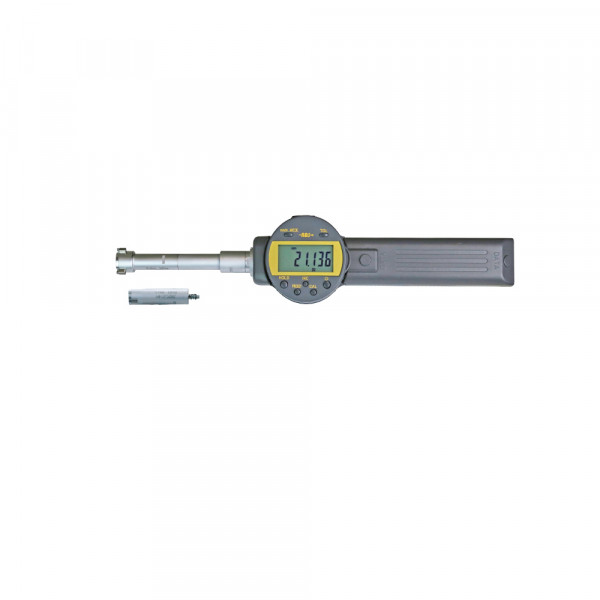

Digital three point internal gauge 6 - 12 mm

- 3 meas. heads, part range 6 - 8 mm, 8 - 10 mm, 10 - 12 mm
- display rotatable up to 330°
- for blind hole
- mit on/off-, cal-, inc-, preset-, hold-, mm/inch- und tol-button
- reading 0,001 mm

Attention: Setting ring and extension are not included! Available as an accessory.

Range: 6 - 12 mm
Type: digital, without setting gauge and extension
usable for measuring of: blind hole
Set: 3 pcs.
Reading: 0,001 mm
Accuracy: 0,004 mm
Data output: RB 6
Related links to "Digital three point internal gauge 6 - 12 mm range"
Technical data
Messbereich mm Range mm Messköpfe Meas. heads... more
Zurück
Messbereich mm
Range mm		 Messköpfe
Meas. heads		 Teil-Messbereiche mm
Part range mm 		 B
mm		 L
mm		 D
mm		 Ablesung mm
Reading mm		 Genauigkeit* µm
Accuracy* µm
6 - 12  3 6 - 8
8 -10
10 - 12		 1,5 55 5,8 0,001 0,004

* bei vollanliegenden Messflächen / at full contact of the measuring faces
