Digital three point internal gauge 20 - 50 mm range

Preview: Digital three point internal gauge 20 - 50 mm range Preview: Technical drawing Digital three point internal gauge

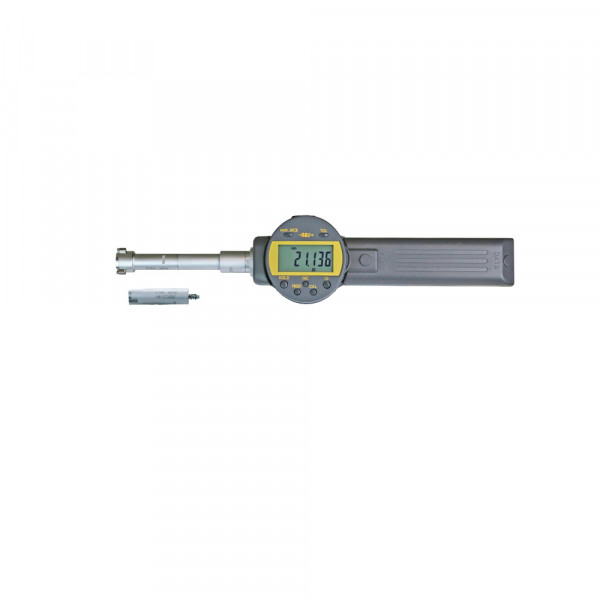

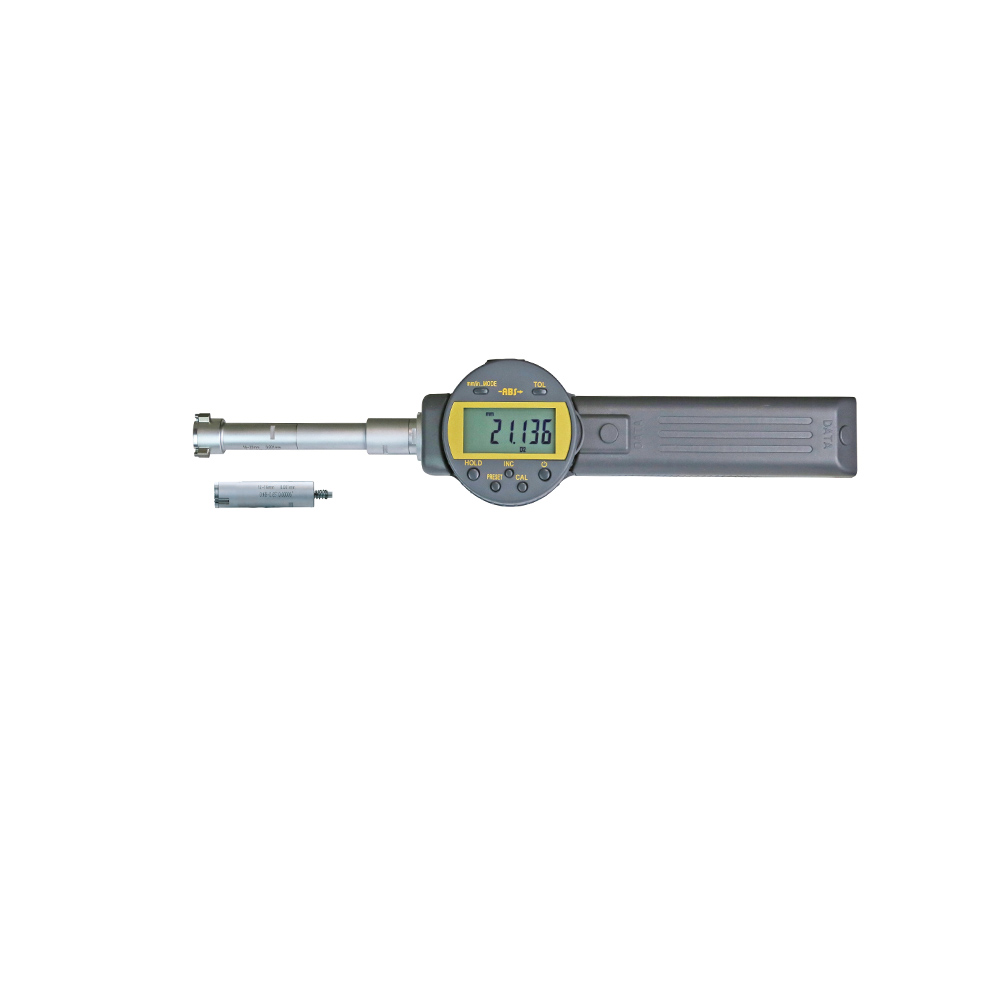

Digital three point internal gauge 20 - 50 mm range

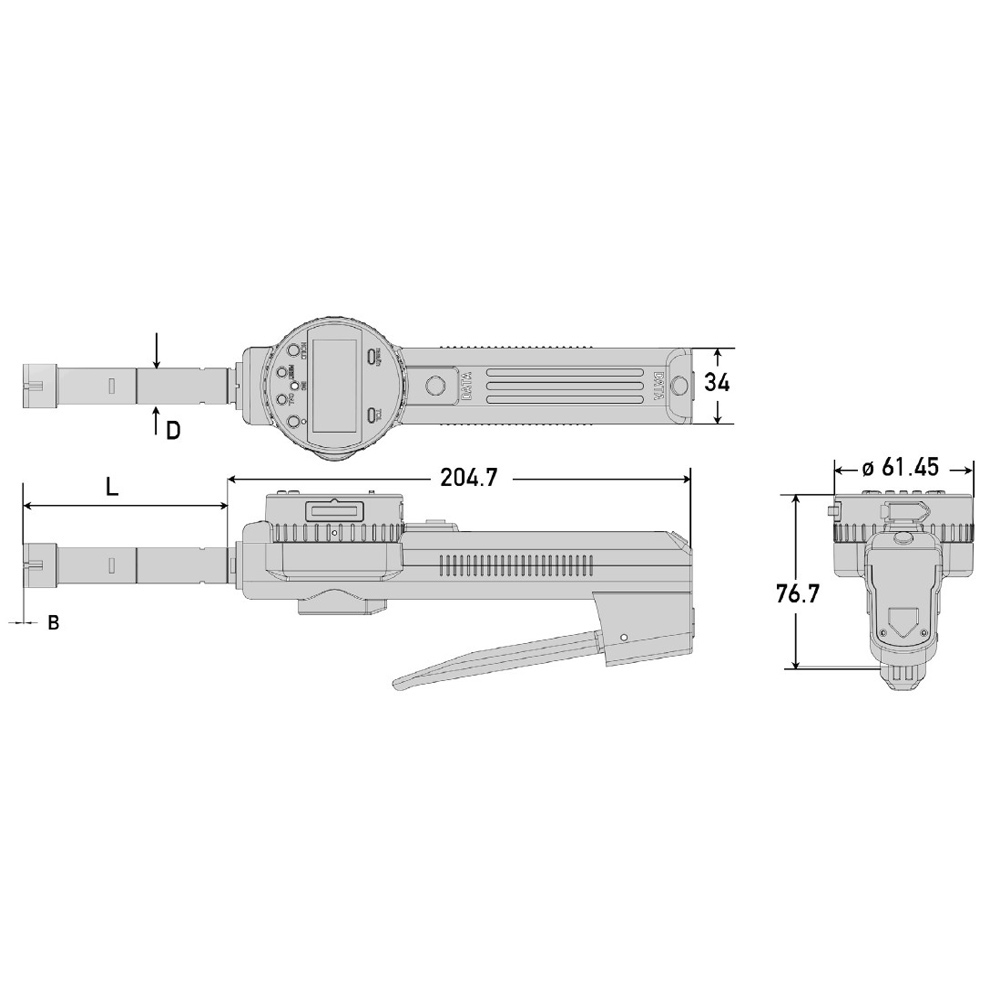

Technical drawing Digital three point internal gauge

€921.00 *
€1,095.99 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 312.346
  • Customs tariff number: 9017 3000
  • European article number: 4054469181684
  • Weight: 2,39 kg
  • In stock: 10
Description Technical data Evaluations 0
Description
Digital three point internal gauge 20 - 50 mm - 4 meas. heads, part range 20 - 25 mm, 25 -... more
Close menu
Product information "Digital three point internal gauge 20 - 50 mm range"

Digital three point internal gauge 20 - 50 mm

- 4 meas. heads, part range 20 - 25 mm, 25 - 30 mm, 30 - 40 mm, 40 - 50 mm
- display rotatable up to 330°
- for blind hole
- with carbide measuring faces
- mit on/off-, cal-, inc-, preset-, hold-, mm/inch- und tol-button
- reading 0,001 mm

Attention: Setting ring and extension are not included! Available as an accessory.

Range: 20 - 50 mm
Type: digital, without setting gauge and extension
usable for measuring of: blind hole
Set: 4 pcs.
Reading: 0,001 mm
Accuracy: 0,004 mm
Data output: RB 6
Related links to "Digital three point internal gauge 20 - 50 mm range"
Technical data
Messbereich mm Range mm Messköpfe Meas. Heads Teil-Messbereich... more
Zurück
Messbereich mm
Range mm		 Messköpfe
Meas. Heads		 Teil-Messbereich mm
Part range mm		 B
mm		 L
mm		 D
mm		 Ablesung mm
Reading mm		 Genauigkeit* µm
Accuracy* µm
20 - 50 4 20 - 25
25 - 30
30 - 40
40 - 50		 0,5 90
90
105
105		 15,8
15,8
23,5
23,5		 0,001 0,004

* bei vollanliegenden Messflächen / at full contact of the measuring faces
