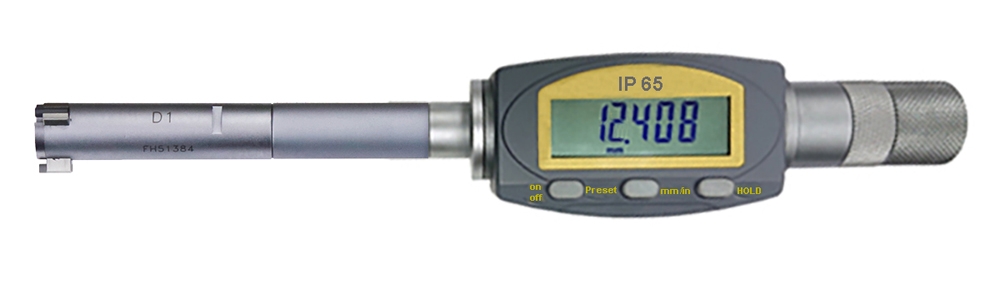

Digital three point internal micrometer 40 - 50 mm

Digital three point internal micrometer 40 - 50 mm IP 65 DIN 863

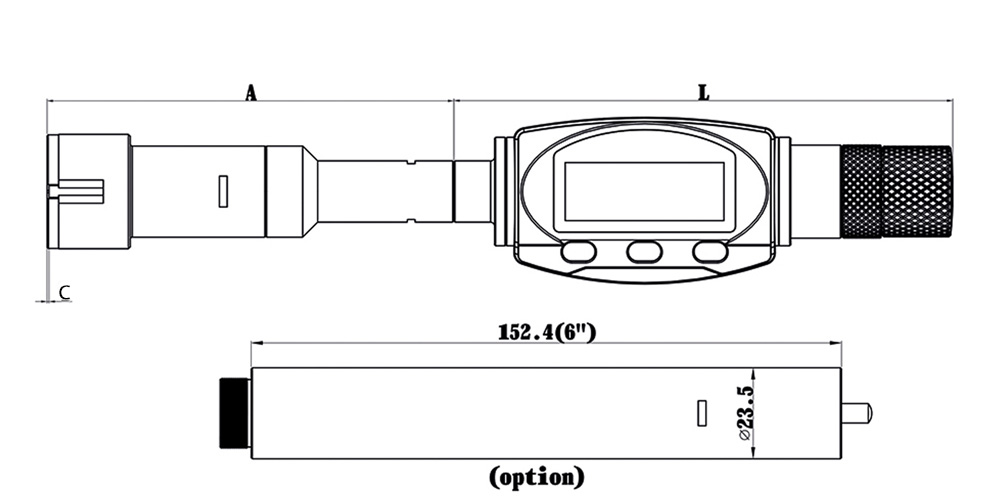

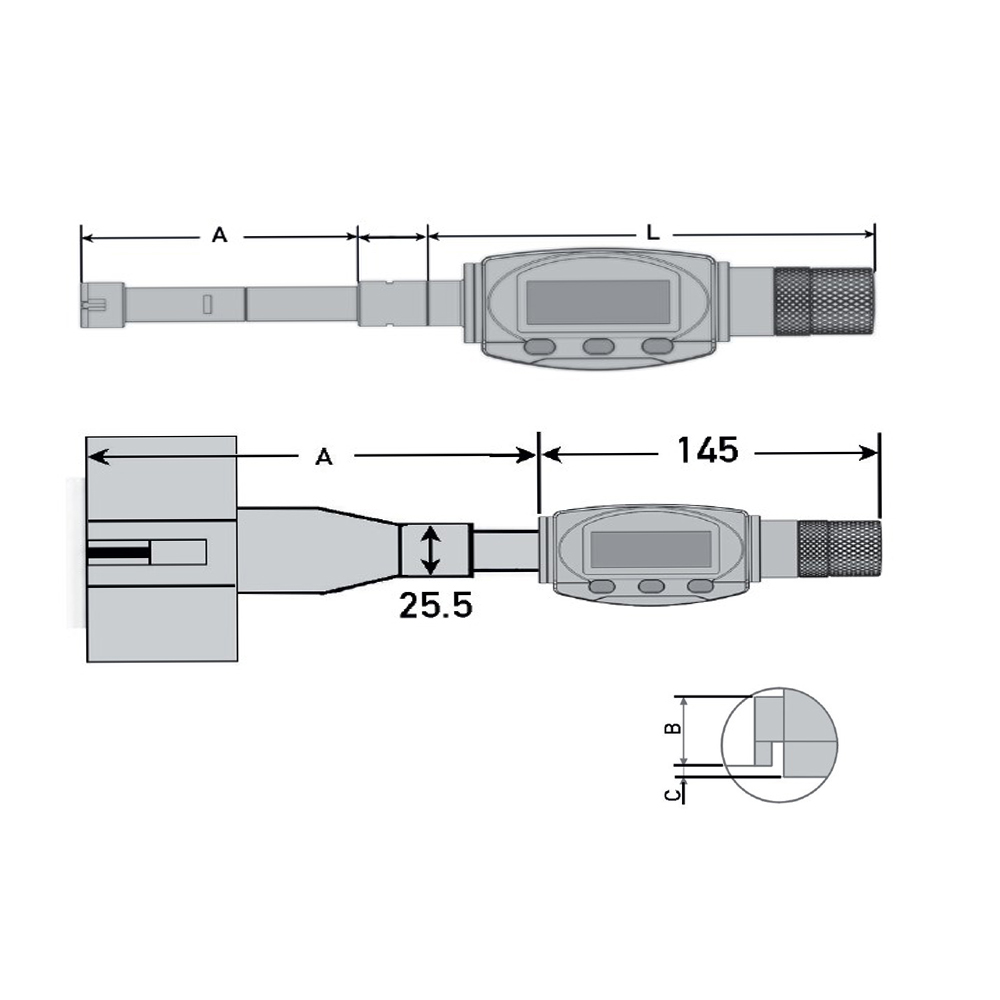

Technical drawing Digital three point internal micrometer 40 - 50 mm IP 65 DIN 863

€333.00 *

€396.27 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 312.238.PN
Customs tariff number: 9017 3000
European article number: 4054469179148
Weight: 1 kg
In stock: 2

Digital three point internal micrometer 40 - 50 mm IP 65 - suitable for measuring blind... more

Close menu

Product information "Digital three point internal micrometer 40 - 50 mm IP 65 DIN 863"

Digital three point internal micrometer 40 - 50 mm IP 65

- suitable for measuring blind holes
- with carbide measuring faces, setting ring 40 mm and extension L 152,4 x Ø 23,5
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- in case/box

Range 40 - 50 mm

Range:	40 - 50 mm
Type:	digital, IP 65
usable for measuring of:	blind hole
Reading:	0,001 mm
Accuracy:	0,005 mm
Data output:	RB 6

Related links to "Digital three point internal micrometer 40 - 50 mm IP 65 DIN 863"

Messbereich mm Range mm Einstellring mm Setting ring mm... more

Zurück

Messbereich mm Range mm	Einstellring mm Setting ring mm	Verlängerung mm Extension mm	A mm	C mm	L mm	Ablesung mm Reading mm	*Genauigkeit µm Accuracy* µm**
40 - 50	40	152,4 x Ø 23,5	105	0,5	128,8	0,001	0,005
* bei vollanliegenden Messflächen / at full contact of the measuring faces
