Digital three point internal micrometer 75 - 100 mm IP 65 DIN 863

€654.00 *
€778.26 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 312.289.PN
  • 9017 3000
  • 4054469179308
  • 5 kg
  • 6
Digital three point internal micrometer 75 - 100 mm IP 65 - one digital display with two... more
Product information "Digital three point internal micrometer 75 - 100 mm IP 65 DIN 863"

Digital three point internal micrometer 75 - 100 mm IP 65

- one digital display with two measuring heads
- with setting ring 87 mm and extension L 152,4 x Ø 23,5
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- suitable for measuring blind holes
- in case/box

Range 75 - 100 mm

Range: 75 - 88 mm, 87 - 100 mm
Type: digital, IP 65
usable for measuring of: blind hole
Set: 2 pcs.
Reading: 0,001 mm
Accuracy: 0,005 mm
Data output: RB 6
Related links to "Digital three point internal micrometer 75 - 100 mm IP 65 DIN 863"

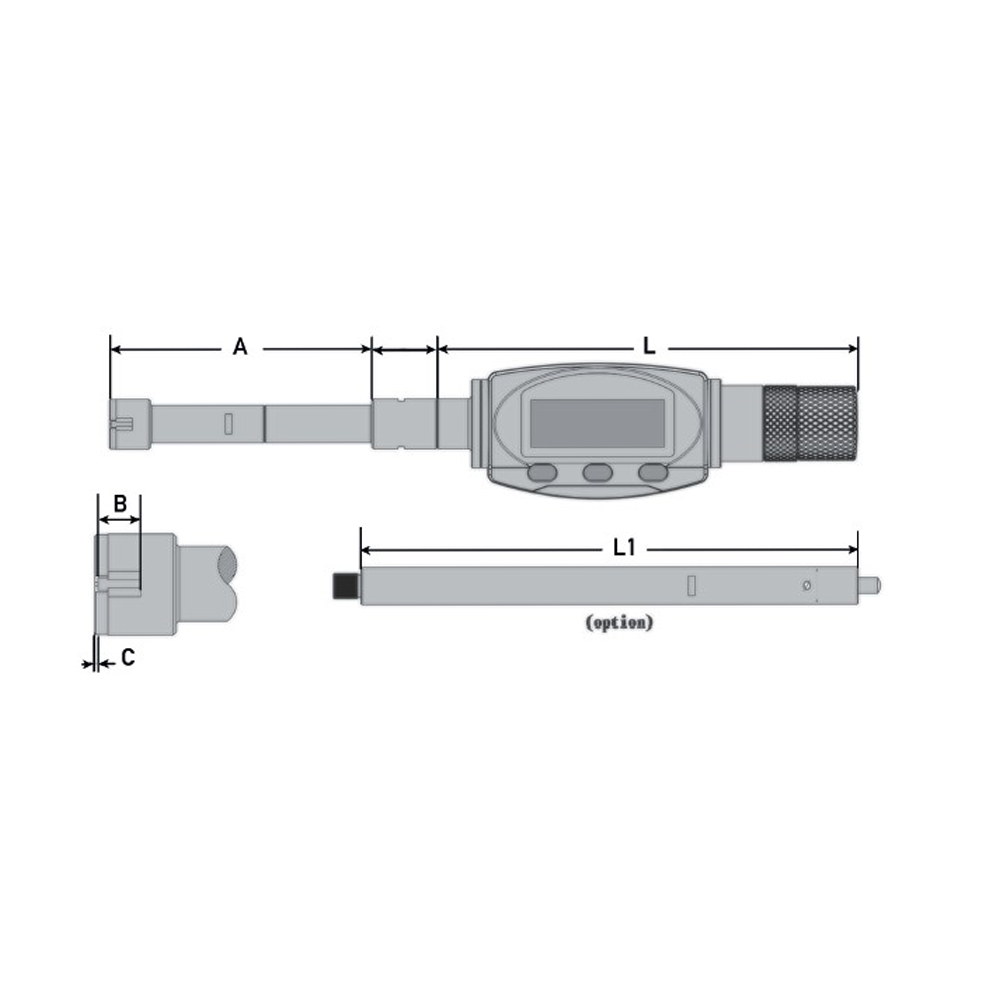

Messbereich mm Range mm Einstellring mm Setting ring mm... more
Messbereich mm
Range mm
Einstellring mm
Setting ring mm
Verlängerung mm
Extension mm
A
mm
C
mm
L
mm
Ablesung mm
Reading mm
Genauigkeit* µm
Accuracy* µm
75 - 88 87 152,4 x Ø 23,5 127 0,5 128,8 0,001 0,005
87 - 100 127 0,5 128,8
