3-point internal micrometer set 50 - 100 mm 4 pcs. DIN 863
€936.00*
€1,113.84 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
312.487
Customs tariff number
9017 3000
European Article Number
4054469182285
Weight
10,7 kg
Stock:
4
Related links:
Request Item
Product information "3-point internal micrometer set 50 - 100 mm 4 pcs. DIN 863"

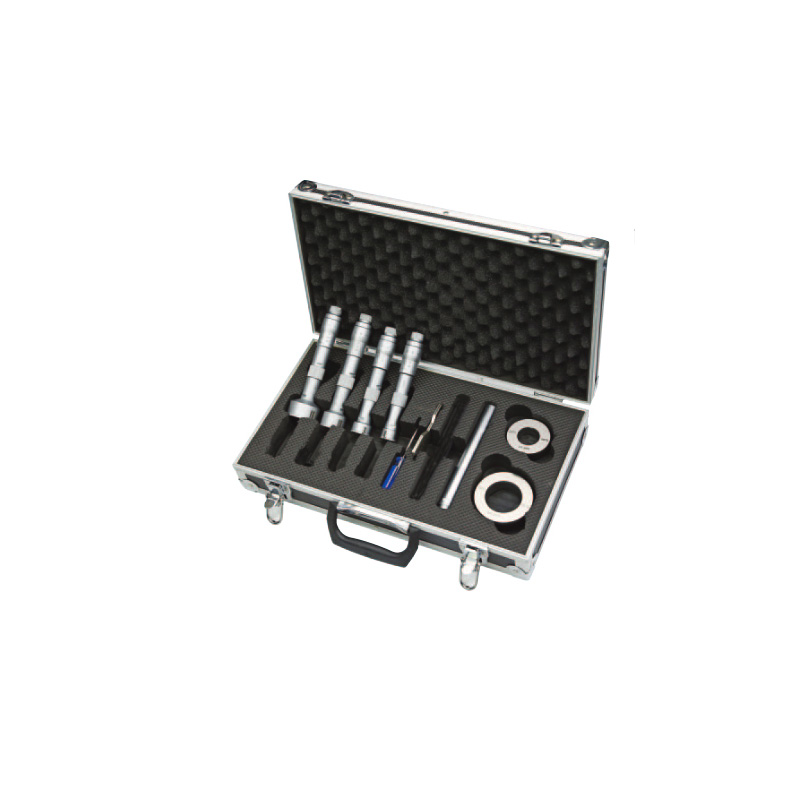

3-point internal micrometer set 50 - 100 mm 4 pcs.
- Set with 4 micrometer, incl. setting rings 62 + 87 mm and extension 150 x Ø 23,5 mm
- for blind hole measuring
- satin chrome finished
- in case/box
| Accuracy: | 0,005 mm |
|---|---|
| Range: | 50 - 63 mm, 62 - 75 mm, 75 - 88 mm, 87 - 100 mm |
| Reading: | 0,001 mm |
| Set: | 4 pcs. |
| Type: | analogue, with carbide measuring faces, with setting gauge and extension |
| usable for measuring of: | blind hole |
Technical Data
| Messbereich mm Range mm |
Einstellring mm Standard mm |
Verlängerung mm Extension mm |
Anzahl Pieces |
Ablesung mm Reading mm |
Genauigkeit* mm Accuracy* mm |
| 50 - 100 | 62 + 87 | 150 x Ø 23,5 | 4 | 0,001 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Skip product gallery
Accessories
Certification threepoint internal micrometer set > 50 - 100 mm
€120.30*
Certification for threepoint internal micrometer set
- for analog and digital threepoint internal micrometer sets ( 4+2 pcs) range 50 - 100 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Stock: 0
