Vernier caliper analog 0 - 150 mm, DIN 862 with certification
€24.30*
Available, delivery time: 1-3 workdays
Product information "Vernier caliper analog 0 - 150 mm, DIN 862 with certification"
Vernier caliper analog 0 - 150 mm with set screw
- made of stainless steel
- satin chrome finished, hardened
- usable to 4-way measurement
- backside with screw table
- in case/box
- Nonius below: 1/20 - 39 mm
- Nonius above: 1/128"
- with certification
Range 0 - 150 mm
| Calibriation certificate: | with |
|---|---|
| Nonius above mm: | 1/128" |
| Nonius below mm: | 1/20 - 39 |
| Range: | 0 - 150 mm |
| Type: | analogue, made of stainless steel |
| to adjust: | with set screw |

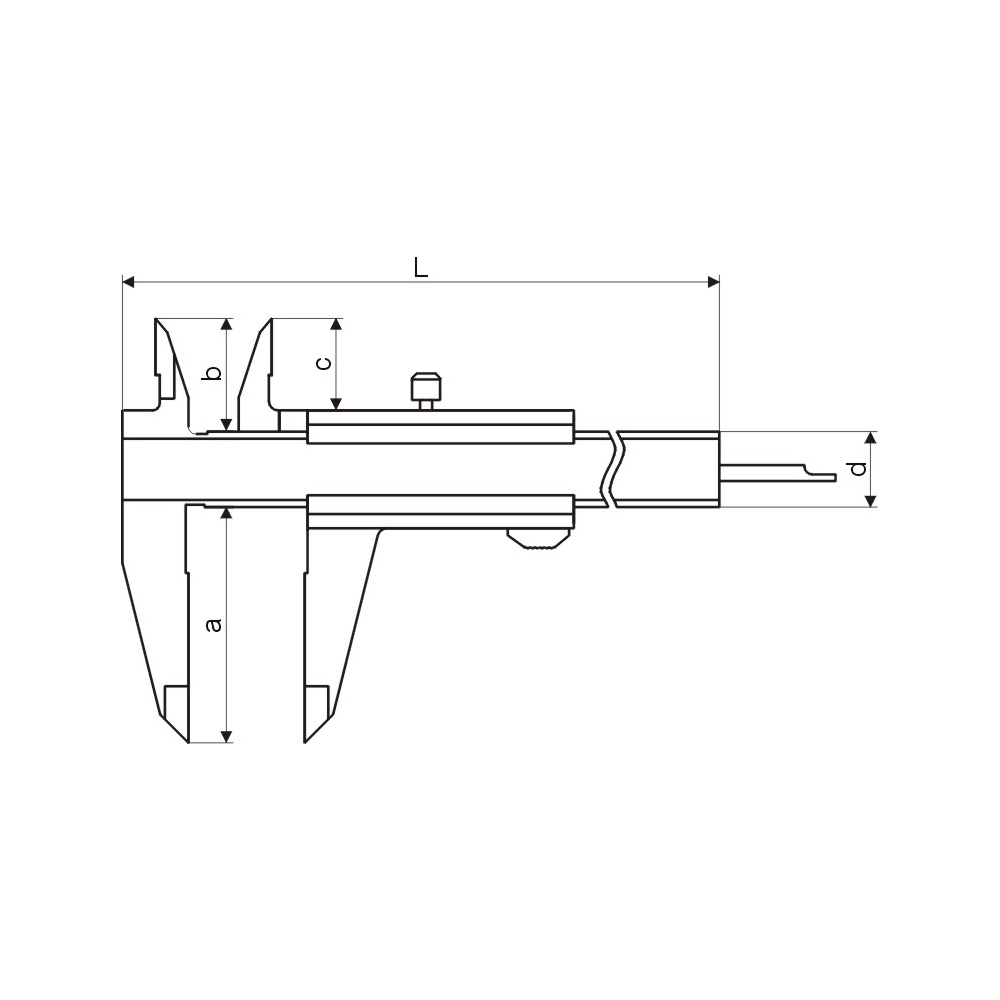

Technical Data
| Messbereich mm Range mm |
Nonius unten mm Nonius below mm |
Nonius oben mm Nonius above mm |
a mm | b mm | d mm |
| 150 | 1/20-39 | 1/128" | 40 | 17 | 16 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
