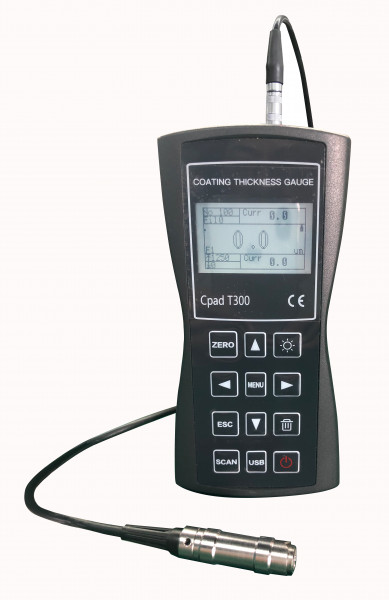

Coating thickness gauge 0 - 1250 µm range with two probes

Coating thickness gauge 0 - 1250 µm range with two probes
€882.00 *
€1,049.58 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 502.430
  • 9017 8000
  • 4054469162560
  • 2 kg
  • 2
Coating thickness gauge 0 - 1250 µm range - Coating thickness measurement by magnetically... more
Product information "Coating thickness gauge 0 - 1250 µm range with two probes"

Coating thickness gauge 0 - 1250 µm range

- Coating thickness measurement by magnetically and eddy current measuring principle
- with two extern probes F1 und N1
- usable for coat made of zinc, aluminium, chrome, copper, rubber, paint, plastic, anodizing
- range 0 - 1250 µm
- high accuracy ± (3% H + 1 µm)
- reading: 0,1 µm (under 99,9 µm), 1 µm (up 100 µm)
- calibration methode: one point or two points
- measuring mode: serial or individuell
- with data storage for 500 measuring value
- Data output USB
- power: 3 x AA- battery

Delivery:
1x device, 1x probe F1, 1 x probe H1, 4 x control standard, 1 x Alu- plate, 1 x iron- plate, 3 x AA- battery, 1 x case

Related links to "Coating thickness gauge 0 - 1250 µm range with two probes"
Messbereich mm Range mm Ablesung mm Reading mm Genauigkeit mm... more
Messbereich mm
Range mm
Ablesung mm
Reading mm
Genauigkeit mm
Accuracy mm
Sonde
Probe
0- 1250 0,1 ( 1 ab 100 µm)
0,1 ( 1 from 100 µm)
3 % + 1 F1 + N1
