Digital disc micrometer 25-50 mm with non-rotating spindle

Preview: Digital disc micrometer 25-50 mm with non-rotating spindle Preview: Technical drawing Digital disc micrometer 25-50 mm with non-rotating spindle
Digital disc micrometer 25-50 mm with non-rotating spindle

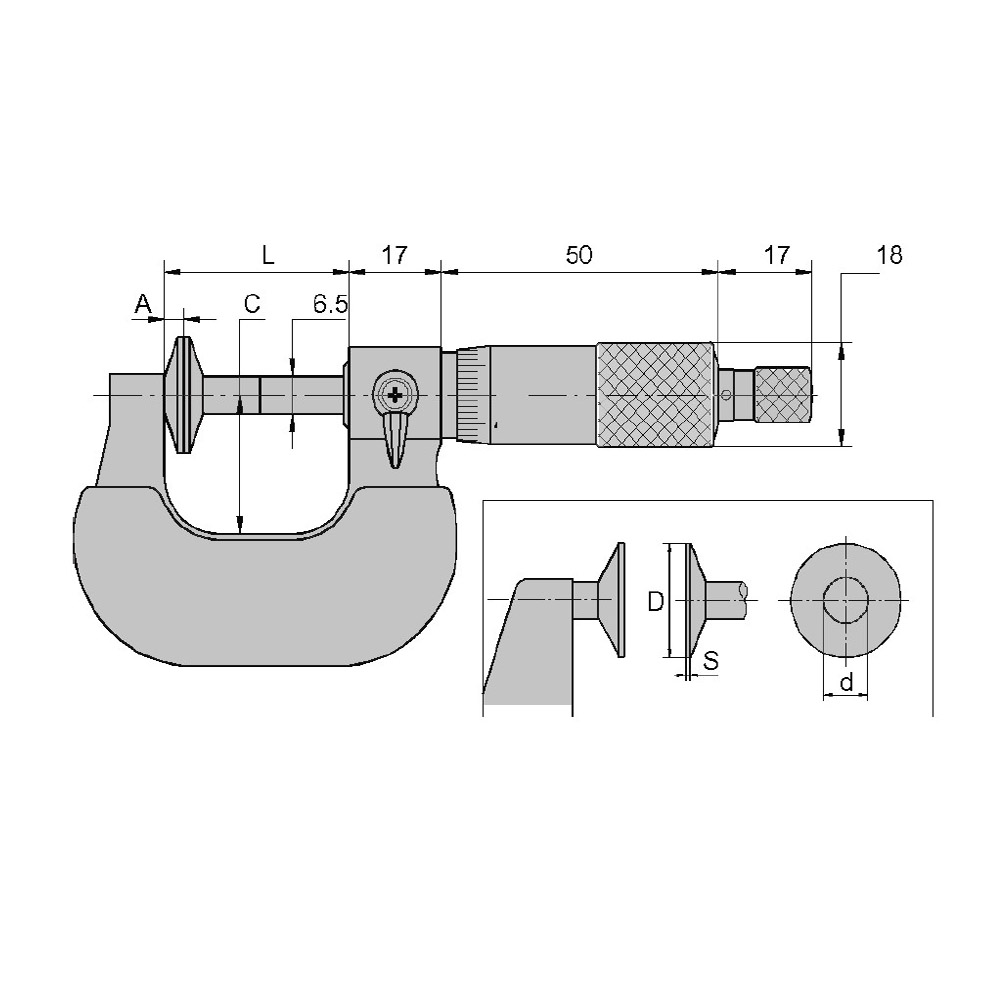

Technical drawing Digital disc micrometer 25-50 mm with non-rotating spindle

€213.60 *
€254.18 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 302.251.C
  • Customs tariff number: 9017 3000
  • European article number: 4054469115481
  • Weight: 0,9 kg
  • In stock: 4
Description Technical data Evaluations 0
Description
Digital disc micrometer 25-50 mm - disc Ø 20 mm , with non-rotating spindle - frame... more
Close menu
Product information "Digital disc micrometer 25-50 mm with non-rotating spindle"

Digital disc micrometer 25-50 mm

- disc Ø 20 mm, with non-rotating spindle
- frame coated
- thimble chrome finished
- with ratchet
- display with on/off, abs/inc, unit and set button
- reading 0,001 mm or 0,00005''
- with data output RB 4.1
- accuracy 0,004 mm
- in case/box

Range 25 - 50 mm

Range: 25 - 50 mm
Type: digital, with disc Ø 20 mm, with ratchet
Reading: 0,001 mm
Accuracy: 0,004 mm
Data output: RB 4.1
Related links to "Digital disc micrometer 25-50 mm with non-rotating spindle"
Technical data
Messbereich mm Range mm Messteller mm Disc mm Genauigkeit... more
Zurück
Messbereich mm
Range mm		 Messteller mm
Disc mm		 Genauigkeit mm
Accuracy mm		 A mm C mm L mm d mm S mm
25 - 50 20 0,004 8 44 68 8 0,7
